XonaChips,XC150,XC450,XC900,XonaPDL 神经元突触细胞微灌流系统


现货促销

型号:XonaChips
价格:请致电:010-67529703
品牌:xona microfluidic



XonaChips™ are the latest innovation in neuron culturing!

XonaChips™ are pre-assembled and pre-bonded, making them easier-to-use than our original silicone devices. These plastic chips improve long-term culture of animal model neurons. They are especially useful for culturing human stem cell-derived neurons, providing better cell attachment and long-term growth.

XonaChips™ are optically transparent and ideal for fluorescence live imaging.

Currently we are offering 2-compartment XonaChips™ with 150, 450, or 900 um microgroove barriers.

XC Pre-Coat™ and XonaPDL™ are optimized for use with the XonaChips™.

Catalog No. Product Size Description

XC150 Box of 5 150 um microgroove barrier


XC450 Box of 5 450 um microgroove barrier


XC900 Box of 5 900 um microgroove barrier


XonaPDL™ 2ml (for 5 XonaChips™) Poly-d-lysine solutions optimized for XonaChips™



XonaChip™ (150 um microgroove barrier)

Cat.No: XC150

New Plastic Chip!

Pre-Assembled!

Pre-Bonded!

Optically Transparent

Size: 75 mm x 25mm

Size Equivalent to a Standard Microscope Slide

The New XC150 has a microgroove barrier that is 150 um in length similar to Xona’s SND150 Silicone Chip.  The XC150 is pre-assembled and pre-bonded.

The 150 um neuron device with its shorter microgroove barrier is suitable for researchers who would like to isolate both axons and dendrites. It is also suitable for certain neuronal cultures that do not grow long processes.

Researchers who wish to study the early events of axonal and dendritic growth may also find the 150 um device useful. The 150 um device also offers the benefits of fluidic isolation and culture organization for transport studies.


XonaChip™ (450 um microgroove barrier)

Cat.No: XC450

New Plastic Chip!

Pre-Assembled!

Pre-Bonded!

Optically Transparent

Size: 75 mm x 25mm

Size Equivalent to a Standard Microscope Slide

The New XC450 has a microgroove barrier that is 450 um in length similar to Xona’s best selling SND450.  The XC450 is pre-assembled and pre-bonded.

The 450 um neuron device is Xona’s most popular device. For most applications it is suitable for separating cell bodies from axons. After two weeks, dendrites in E18 rat cortical neurons have typically not crossed the microgroove barrier.

The 450 um neuron device also provides the added features of fluidic isolation and culture organization for transport studies.

XonaChip™ (450 um microgroove barrier)

Cat.No: XC450

New Plastic Chip!

Pre-Assembled!

Pre-Bonded!

Optically Transparent

Size: 75 mm x 25mm

Size Equivalent to a Standard Microscope Slide

The New XC450 has a microgroove barrier that is 450 um in length similar to Xona’s best selling SND450.  The XC450 is pre-assembled and pre-bonded.

The 450 um neuron device is Xona’s most popular device. For most applications it is suitable for separating cell bodies from axons. After two weeks, dendrites in E18 rat cortical neurons have typically not crossed the microgroove barrier.

The 450 um neuron device also provides the added features of fluidic isolation and culture organization for transport studies.


XonaChip™ (900 um microgroove barrier)

Cat.No: XC900

New Plastic Chip!

Pre-Assembled!

Pre-Bonded!

Optically Transparent

Size: 75 mm x 25mm

Size Equivalent to a Standard Microscope Slide

The New XC900 has a microgroove barrier that is 900um in length similar to Xona’s SND900 Silicone Chip.  The XC900 is pre-assembled and pre-bonded.

The 900 um neuron device, with its long microgroove barrier, is suitable for researchers who would like to perform long term experiments while ensuring axonal isolation. In some cultures, after two weeks of growth dendrites may cross the 450 um barrier thereby necessitating the use of the 900 um device.

It is also suitable for certain neuronal cultures which grow long processes. Researchers who also wish to make sure they are isolating 100% axons only in the distal chamber may also find the 900 um device useful. The 900 um device also offers the benefits of fluidic isolation and culture organization for transport studies.

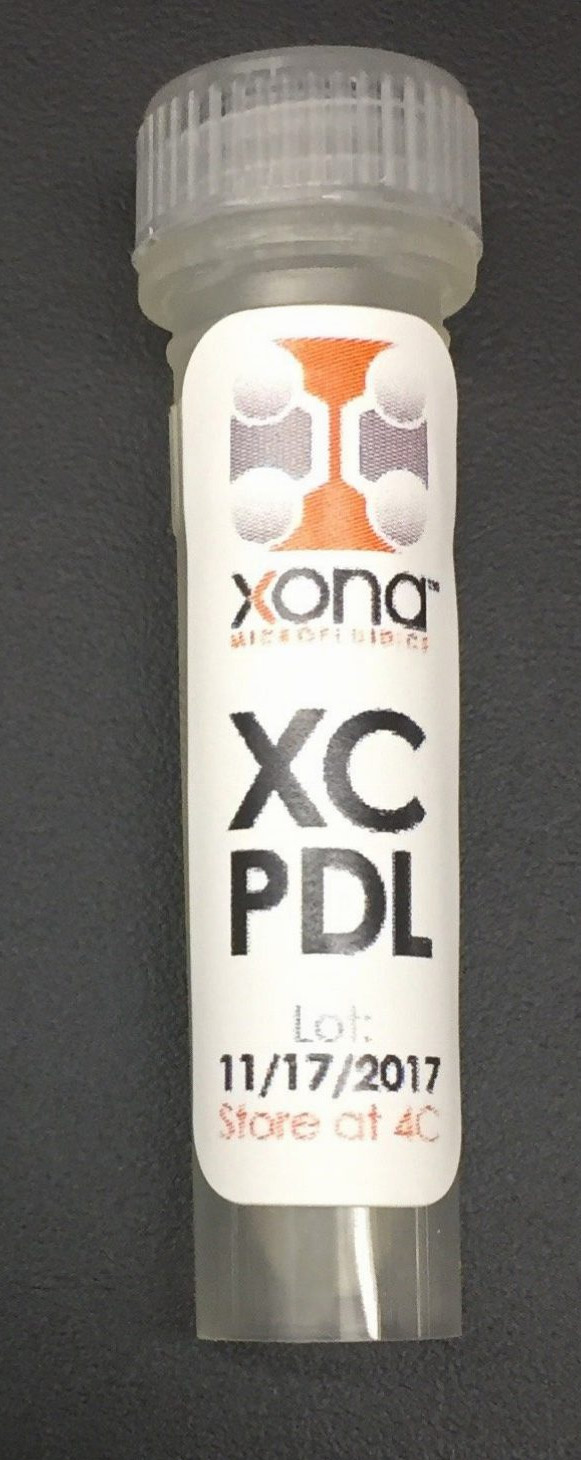

XonaPDL™ 2ml (for 5 XonaChips™) Poly-d-lysine solutions optimized for XonaChips™
