Product Detail

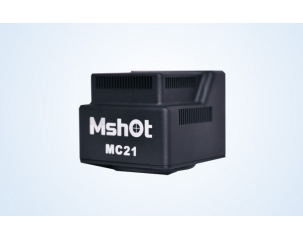

Cooling CCD Camera MC21

Professional-grade CCD microscope camera MC21/MC21-M is a cooling CCD camera for fluorescent and near-infrared. The CCD camera uses 2/3 inch CCD sensor SONY EXview HAD CCD sensor, it can achieve high clarity image and as good as Olympus DP72.

The easy-installed driver and software can achieve real-time preview,image capture and video capture.The bundled Mshot software is not only able to handle multi-aspect microscopic images, but also support measurement and fluorescent imaging process.

MC21 CCD Camera application fields
Analysis of ultra-weak fluorescence, chemiluminescence and flow cytometry, Microbiology and near-infrared .

MC21 Color CCD Camera spectrum response curve:

Parameters :

MC21 Color CCD Camera Specifications:

Model	MC21	Camera type	Color CCD Camera
Sensor	Sony	Pixel size	6.45um×6.45um
Sensor model	ICX285AQ	Frame rate	15fps 1360*1024
Sensor size	2/3-inch (4:3)	Shutter type	Electronic shutter
Effective resolution Size	8.8mm (H) X 6.6mm (V ) diagonal 11mm	Exposure control	Automatic/manual
Effective pixels	1360H x 1024V(1.4MP)	Dynamic range	67dB
A/D conversion(color depth)	12bit	Data connector	USB2.0(480Mbit/sec)
Scanning mode	Progressive scanning	Supporting connector	SDK
Spectrum response	400nm~1200nm	Camera connector	Standard C-mount
Readout noise	4LSB	Working temperature	-30℃~+70℃
G sensitivity	1300mv	Working power(current)	DC 5V±5%
Cooling	semiconductor refrigeration, - 28C° at ambient temperature	Operating system	Windows2000,XP,Vista,Windows7 32bit/64bit
Controller	Image size, image acquiring, exposure time, GAMMA, contrast ratio, brightness, RGB gain, saturation	Applications	Weak fluorescent, chemiluminescence, bioluminescence, flow cytometry, bright and dark field observation, imaging of GFP, FISH, NIR, FRET, DIC, and live cell, IHC, infrared observation.
