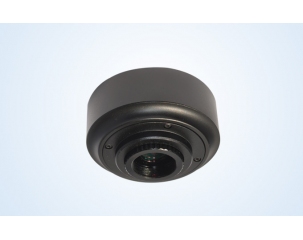

5.0MP CMOS Camera MD50
CMOS microscope camera MD50 can be connected to any standard microscope in trinocular head, such as bio-microscope, stereo microscope and metallurgical microscope. It has the advantages of high transmission speed, good color rendition, clear image and easy storage, etc. MD50 CMOS camera is widely used in the field of industrial quality management, teaching research, material analysis, clinical examination and machine vision, etc. This CMOS camera makes the complex work become easy, interesting and can be finished efficiently.
Features of MD50 CMOS microscope camera:
• Hi-speed USB2.0 data interface, up to 480Mb/s;
• Real 5.0 megapixel progressive scanning color CMOS image sensor, no compression, no interpolation;
• Wide dynamic range, supports static image capture (JPG, BMP);
• Plug and play, no external power supply;
• Support standard C-mount lenses and all kinds of customized lenses, rigid and durable aluminum shell.
Performance Features of MD50 CMOS microscope camera:
1.Plug and play, easy to connect through USB2.0 interface, no need to additional acquisition devices to get real-time uncompressed video data and capture of images. Applicable for shooting with any standard biological, stereo and metallurgical microscopes.
2.Matched with high compatibility and compact MSHOT microscope imaging software, you only need 5 minutes to achieve self-operation. Automatic control of exposure speed, contrast, brightness, saturation and image size. MSHOT software uses a plug and play modularity design with excellent user friendly interface. Users can easily do camera shooting operation on computer.
3.Strong sharing capability, data can be stored and edited. The images can be shown on the computer screen, achieve real-time image observation and edit, process, store, transmit data simultaneously. If use the projector together with the MD50 CMOS camera, it turns to an electronic multimedia teaching composition and presentation system, which can improve the equipment utilization, sharing capability and mutual exchange. It makes the operating atmosphere more humanization.
4.Support video function, compression mode can be selected as the storage format, easy to save and transfer.
Parameters :
| Sensor< |
1/2.5″ color CMOS, 5MP< |
Sensitivity< |
1.4V/lux-sec (550nm)< |
| Resolution< |
2592x1944(12bit) effective< |
Data Interface< |
USB2.0 (480 Mbit / sec)< |
| Pixels Size< |
2.2μm x 2.2μm< |
Power Supply< |
DC 5V ± 5%< |
| Frame Rate< |
5fps2592x1944
12fps1280x960< |
Electricity< |
≈100mA < |
20fps 640*480
17fps 1024*768< |
White Balance< |
Manual/One push auto< |
| Shutter< |
Electronic< |
Exposure control< |
10μs–32s, Auto exposure< |
| S/N Ratio< |
44dB< |
Software< |
Image Display/Capture/Video< |
| Scanning Mode< |
Progressive scanning< |
Operating Temp< |
-30°C ~ 70°C< |
| Spectral Response< |
400nm～1000nm< |
Applications< |
Micro imaging, Common image acquisition, Macro Imaging< |
