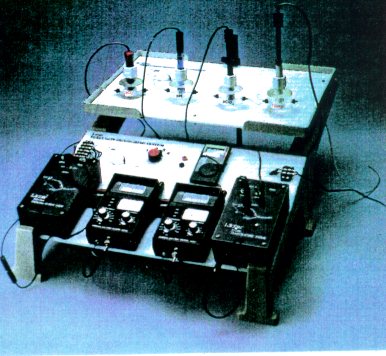

Organ Perfusion Monitoring System
 |
 |
Multiparameter monitoring System for
Organ Perfusion and bioreactor Systems |
Track the vital signs of your organ perfusion study or hollow fiber bioreactor system.
- Optimize your perfusion or bioreactor by
monitoring these vital parameters online
- Ideal for liver, kidney, lung,
heart, and other perfused organ tissues
- Indispensable for monitoring
hollow fiber and other continuous flow bioreactors.
ADVANTAGES:
-
IDEAL FOR ORGAN PERFUSION STUDIES. The Ultra-P micro flow
through electrodes
for pH, pO2, and pCO2 are ideally suited
for perfusion studies
in liver, kidney, heart, lung, and other perfused
organ systems.
- USED IN CELL PERFUSION STUDIES. The Micro flow through
electrodes can also be
used in cell perfusion studies of various animal
and plant cells.
- ALL BIOCOMPATIBLE COMPONENTS. All electrode components
are made of glass,
fluoropolymer, acrylic, and epoxy and are
completely compatible with perfusate media.
- LOW VOLUME FLOW THROUGH
SYSTEMS. All flow through electrodes have low internal
volumes and are
designed for flow rates between 1 and 150 ml per minute.
- USE WITH SILASTIC
OR OTHER FLEXIBLE TUBING. Electrodes come with hose barb end
fitting.
Just slip the silastic or other tubing over the hose barb fitting
for a
leak free connection.
- OPTICALLY CLEAR FLOW CELLS. Optically clear flow
cells make for simple visual
bubble detection and bubble
elimination.
- CONTINUOUSLY RECORD PH, PO2, AND PCO2. The pO2
flow-through module plugs directly into any standard strip
chart recorder for
continuous recording. The pH and pCO2 flow-through
modules can be interfaced
to a strip chart recorder using a Lazar
pH/millivolt meter or any standard
laboratory pH/millivolt meter.
- RAPID
RESPONSE. Response time for all the flow through electrodes is less than
30 seconds for a 50% increase in the parameter being
monitored.
SPECIFICATIONS
MODEL FTPH-2 FLOW THROUGH PH ELECTRODE
pH range: pH 1 to 13
Temperature Range: 0 to 80 oC
Internal
Volume: less than 50 microliters
Connector Cable: Available in U.S.
Standard, BNC, Radiometer, * or other
common pH meter connectors. Standard
30 inch cable length. Specify connector
type when ordering.
Response Time:
Less than 10 seconds per pH unit.
Fluid Flow Fittings: Miniature hose barb
connectors compatible with standard
size silastic or other types of
flexible tubing.
MODEL DO-166FT FLOW THROUGH PO2 ELECTRODE
pO2 range: 0 to
760 Hg.
Temperature Range: 0 to 50 oC
Internal Volume: Less than 200
microliters
Connector Cable: Available in dual banana plug for Interface
with strip chart
recorder or U.S. Standard, BNC, or Radiometer* plug for
Interrace with pH
meter. 30 inch cable length. Specify connector type when
ordering.
Response Time: Less than 12 seconds for 90% of reading
Fluid Flow
Fittings: Miniature hose barb connectors compatible with standard
silastic
or other types of flexible tubing.
MODEL GS-136COFT FLOW THROUGH PCO2 ELECTRODE
pCO2 range: 0 to 500 mm Hg.
Temperature Range: 0 to 50
oC
Internal Volume: Less than 200 microliters
Connector Cable: Available in
U.S. Standard, BNC, or Radiometer* or other
common pH meter connectors. 30
inch cable length. Specify connector type when
ordering.
Response Time:
Less than 20 seconds for 100 mm Hg change.
Fluid Flow Fittings: Miniature
hose barb connectors compatible with standard
silastic or other types of
flexible tubing.
ORDERING INFORMATION
COMPLETE MULTIPARAMETER
MONITORING SYSTEMS
Model PFS-2
Complete 3 parameter monitoring system including pH, pO2,
and pCO2 flow-through modules consisting of mcro electrodes
and micro flow through cells with input and output ports;
separate analyzer with RS232 output for each of the three
parameters pH pO2, and pCO2; RS232 to USB converter which combines
the 3 signals from the analyzers and plugs into the USB port of PC;
and complete software program for monitoring, recording, and plotting
all three parameters on a PC.
SINGLE PARAMETER FLOW THROUGH MODULES
Model FTPH-2
- micro flow through pH electrode module
Model DO-166FT micro flow through
pO2 system
Model GS-136COFT micro flow through pCO2 system
Model ISM-146 NAFT - micro flow
through sodium system
Model ISM-146CLFT - micro flow through chloride
system
Model ISM-146KFT
- micro flow through potassium system
