Micro Ion Electrodes

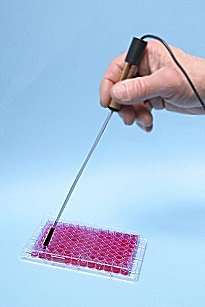

After the success of the Lazar micro pH electrode, Lazar Research Laboratories, Inc. developed a series of micro ion electrodes which are used today by research centers worldwide. Our micro ion electrodes measure ions down to 10 micro liters.

Limited time only! FREE digital millivolt meter with purchase of micro electrode Full Details


Features:
  • High Sensitivity: Most ions can be measured to below 1 ppm. Some ions such as copper (+2) can be measured down to the low part per billion range.
  • Fast response time: Due to membrane design parameters ion selective have a rapid response to changing ionic concentration. Response time of 30 seconds is typical.
  • Broad concentration range: Electrodes will detect ions down to the low part per million range up to several thousand ppm. Some of the electrodes will measure up to a concentration of 1 Molar.
  • Resistant Body: Makes electrodes usable in acids, bases and some solvents.
  • Portable: On-the-spot field measurements can be made without a trip back to the laboratory.
  • Small Samples: Measures samples as small as 10 micro liters.
  • Quick and Simple Readings: The electrodes can be used with any portable or laboratory pH/millivolt meter.
  • Direct Plug: Our electrodes plug directly into your pH/millivolt meter. No compatibility problems.
  • Some micro ion electrodes also available for NMR tubes - see below

    Best buy! Complete micro ion measurement systems measure, log & graph all in one!

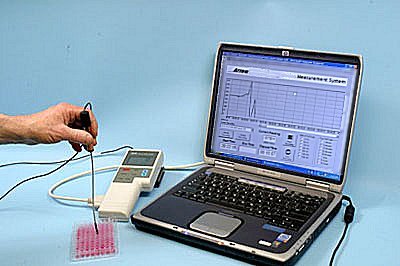

    You can now purchase ion electrodes as a complete measurement system which measures, logs and graphs all-in-one. System includes meter, ion electrode, our exclusive PC plotting software and more.

    See ion systems index for features and advantages of our complete ion systems.
    Pricing and specifications for both electrodes and complete systems are below.

    Electrodes below with "*" are mono electrodes which require a micro reference electrode which is included in the price of the electrode (save $100 when purchasing reference electrode together with electrode). All other electrodes are combination electrodes where reference electrodes are already built in.


    Scroll further for ion specifications ------------------------------------------->


    ** Add -XS to catalog numbers for system catalog numbers
    Electrode type Cat. No. Measurement
    Range (M)
    Concentration
    Range(PPM)
    pH Range Temp. Range (oC) Interferences
    Ammonia LGS-136NHM 5exp-7 to 1.0 0.01 to 17,000 above 11 0 to 50 volatile aminues
    Bromide LIS-146BRCM 5exp-6 to 1.0 0.4 to 79,000 2 to 14 0 to 80 S-, I-, CN-, high levels of CL- and NH3
    Cadmium * LIS-146CDCM 1exp-7 to 1exp-1 0.01 to 11,200 2 to 12 0 to 80 Ag+, Hg+2, Cu+2
    Calcium * LIS-146CACM 5exp-6 to 1.0 0.2 to 40,000 3 to 10 0 to 50 Pb+2, Hg+2, Cu+2, Ni+2
    Carbon Dioxide LGS-136COM exp-2 to exp-4 4.4 to 440 4.8 to 5.2 0 to 50 Volatile weak acids
    Chloride LIS-146CLCM 5exp-6 to 1.0 1.8 to 35,500 2 to 12 0 to 80 S-2, I-, CM-, Br-
    Copper LIS-146CUCM 1exp-8 to 1exp-1 0.0006 to 6,350 2 to 12 0 to 80 Ag+, Hg+2
    Cyanide LIS-146CNCM 5exp-6 to 1exp-2 0.13 to 26011 to 130 to 80S-2, I-, Br-, Cl-
    Iodide LIS-146ICM 5exp-8 to 1.0 0.006 to 127,0000 to 140 to 80S-2, CN-, Br-, Cl-
    Lead * LIS-146LICM 1exp-6 to 1exp-1 0.2 to 20,7003 to 80 to 80Ag+, Hg+2, Cu+2, high levels Cd+2 and Fe+2
    Nitrate * LIS-146NOCM 7exp-6 to 1.0 0.6 to 62,0002.5 to 110 to 50ClO4-, I-, CN-, BF4-
    Potassium * LIS-146KCM 1exp-6 to 1.0 0.04 to 39,0002 to 120 to 50Cs+, NH4+
    Silver/sulfide LIS-146AGSCM 1exp-7 to 1.0 AG = 0.01 to 107,900
    S = 0.003 to 32,100
    2 to 120 to 80Hg+2, Hg+
    Sodium * LIS-146NACM 1exp-6 to saturated 0.2 to 23,0005 to 120 to 80H+, K+, Li+, Ag+, Cs+, Tl+
    Micro Reference Electrode (purchased separately) LIS-146DJM N/A N/A 2 to 12 0 to 80 None

    Micro electrodes for NMR tubes

    The following electrodes are available with extra long stem for measurement within NMR tubes. These ion selective electrodes for NMR can be purchased by themselves or part of a complete system.


    ** Add -XS to catalog numbers for system catalog numbers
    Electrode TypeCat. No.
    ChlorideLIS-146CLNMR
    CyanideLIS-146CNNMR
    IodideLIS-146INMR
    Silver/SulfideLIS-146AGSNMR

    Limited time only! FREE digital millivolt meter with purchase of micro electrode Full Details

    The number of free meters is limited to stock on hand.

    To guarantee availability, reserve your free digital meter before August 15, 2017


    For specific questions or to receive printed literature, send your request by email to slby800@163.com or call us at 400-650-8506.
